DJI Manifold 3 Accessory Kit (Matrice 4D Series)

This mounting assembly safely attaches your Manifold 3 to DJI Matrice 4D Series drones.

Installation & Usage Notes

• Secure the coaxial cable: Fully tighten the cable screws to maintain water resistance and prevent connection drops caused by mid-air vibrations.

• Lock the connector: Fasten the connector screws firmly using the provided hex key to keep them from vibrating loose during flight.

• Factory reset: The tip of the hex key doubles as a pin to press the Manifold 3's reset button.

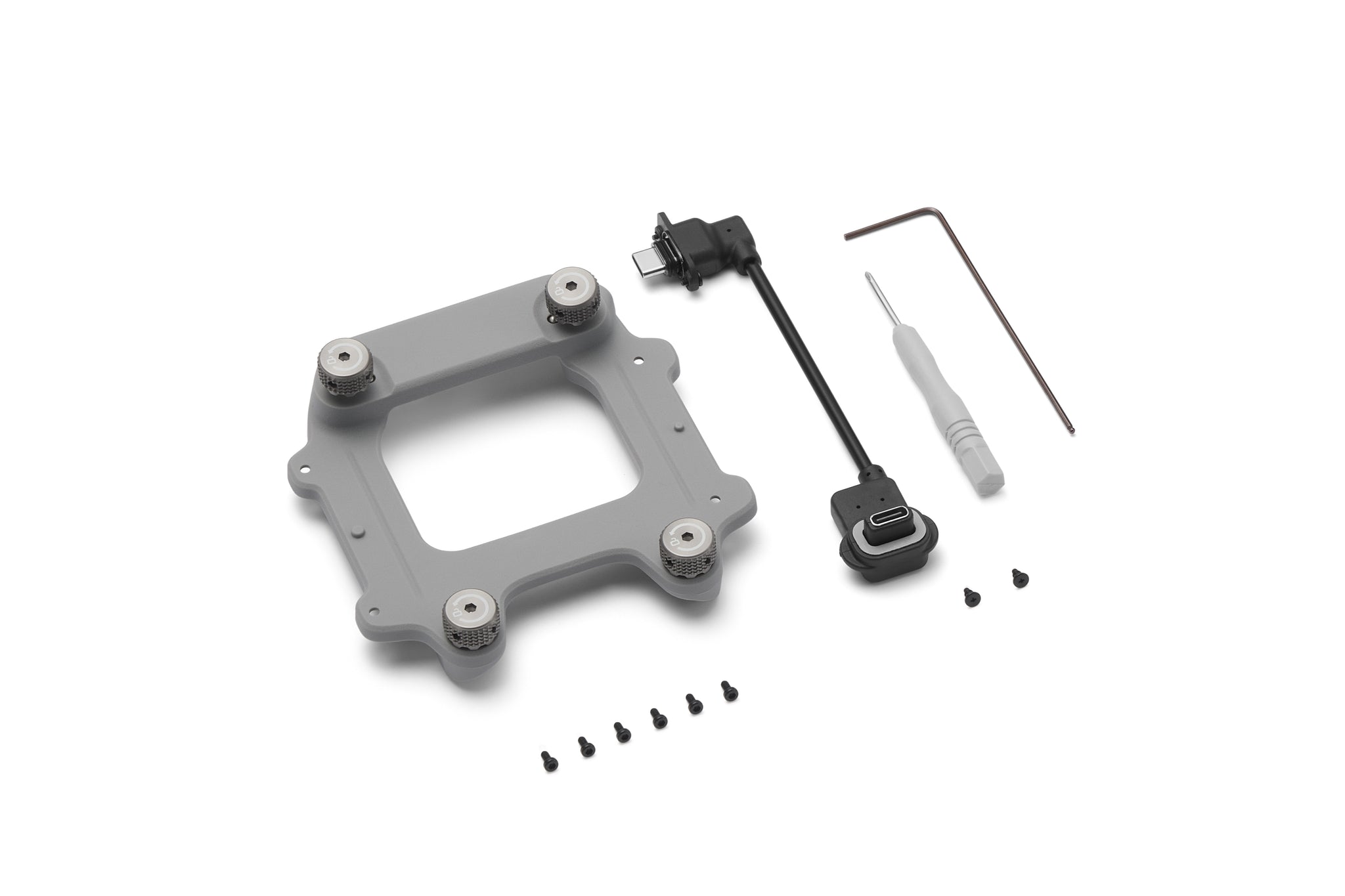

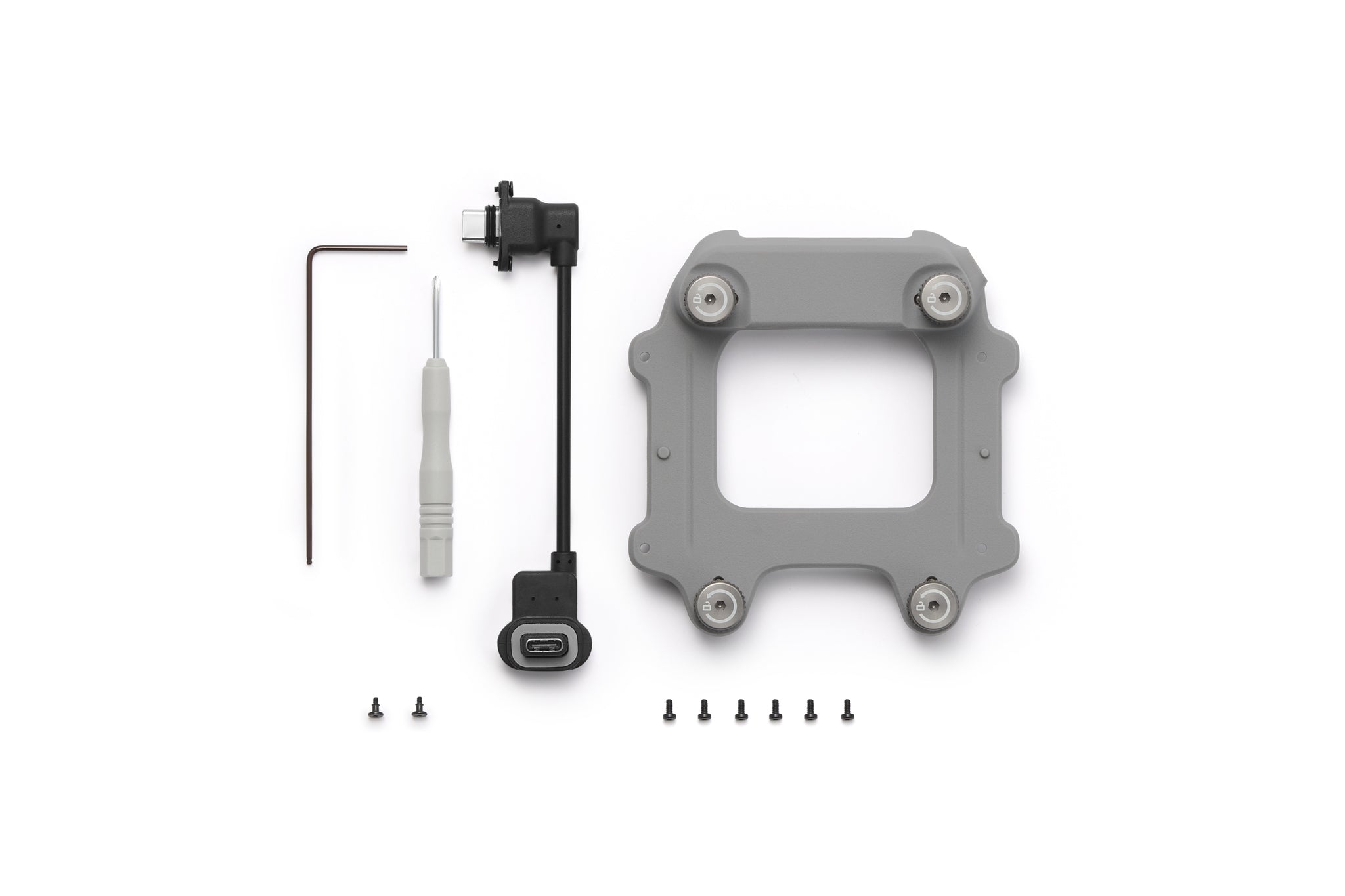

Package Contents

• 1x Matrice 4D Connector

• 1x Matrice 4D Coaxial Cable

• 6x Connector Screws (Manifold 3)

• 2x Coaxial Cable Screws (Manifold 3)

• 1x Phillips Screwdriver

• 1x Hex Wrench / Key

Specs & Compatibility

• Installed Weight: 28 g (includes only the connector, cable, and essential mounting screws)

• Supported Devices: DJI Matrice 4D Series aircraft, Manifold 3
